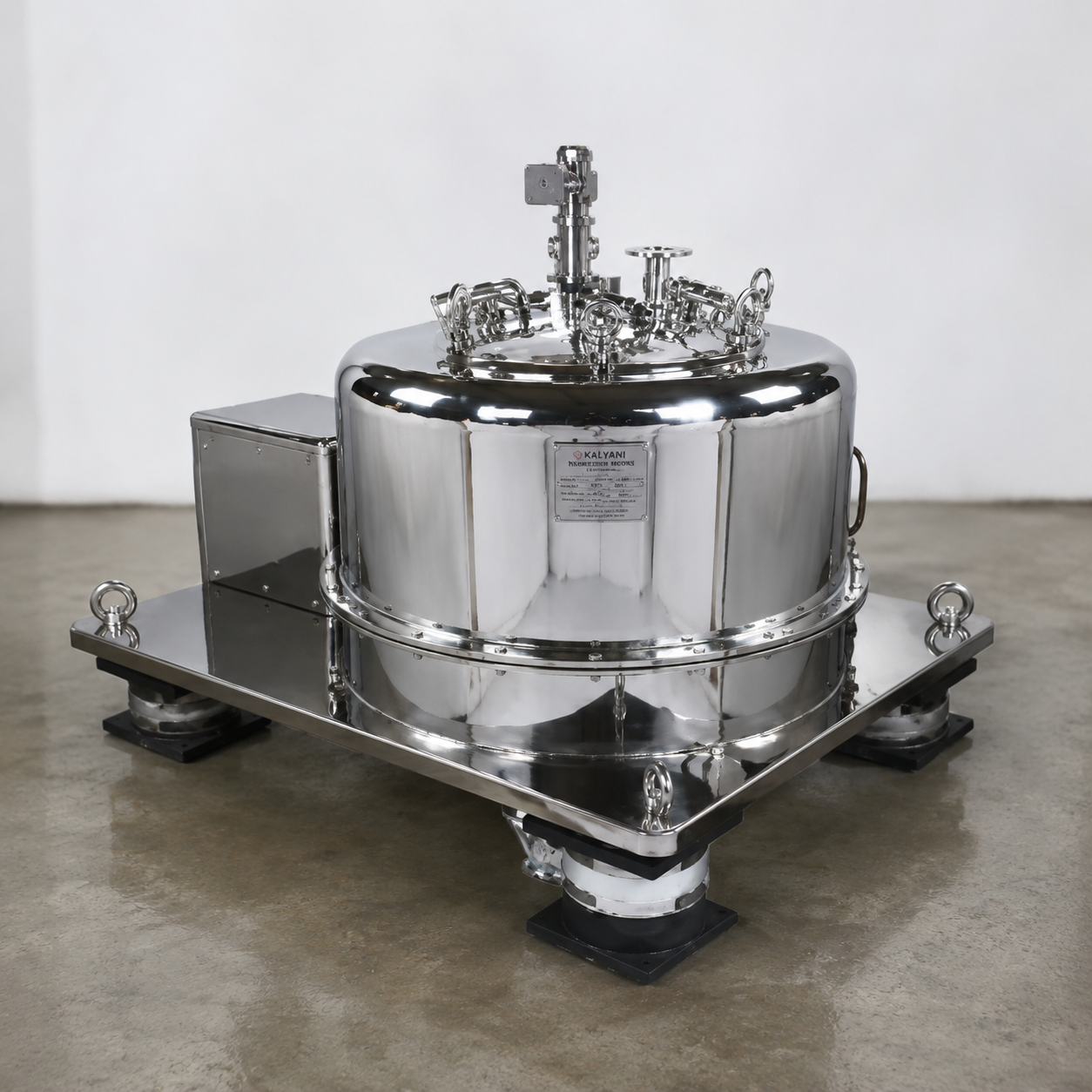

Bottom Discharge Type Centrifuge
Advanced bottom discharge centrifuge designed for efficient solid-liquid separation, low residual material and reliable process operation with options for automation.
Engineered for controlled bottom discharge, stable operation and convenient material handling in demanding industrial processing environments.
Key Specifications
Designed for controlled material discharge, efficient separation and reliable operation across demanding process applications.
Material Discharge
Through Bottom
Suspension / Mounting
Inertia Plate with Anti-Vibration Mounts (4 Point Suspension)
Construction
cGMP Construction
Size
900 mm Dia to 1500 mm Dia
Usable Volume
200 Ltr to 900 Ltr per Batch
Basket Speed
500 rpm to 1500 rpm
Special Features
Large Central Opening, Low Residual Material
Material of Construction
SS, Carbon Steel, Hastelloy, Rubber Lined
Key Features
Designed for efficient discharge, reduced residual material, controlled operation and process automation.
Bottom Material Discharge
Controlled discharge directly through the bottom arrangement.
cGMP Construction
Suitable construction for hygienic and demanding process environments.
Large Central Opening
Large central opening facilitates convenient process access and material handling.
Low Residual Material
Designed to minimize residual material after discharge.
Complete CIP System
Clean-in-place configuration available for suitable process requirements.
Heel Removal System
Designed for efficient removal of remaining material.
Process Automation Option
Automation options available for controlled processing.
Vibration Monitoring
Monitoring option available for improved operational control and safety.
Zero Speed Interlock
Safety interlock option helps prevent unsafe access during basket movement.
Advanced Separation with Controlled Bottom Discharge
The Bottom Discharge Type Centrifuge is designed for applications requiring efficient solid-liquid separation, controlled discharge and reduced residual material. Automation and cleaning options can be configured according to process requirements.
Need a Reliable Bottom Discharge Solution?
Share your process requirements with our engineering team and get the right centrifuge configuration for your application.
