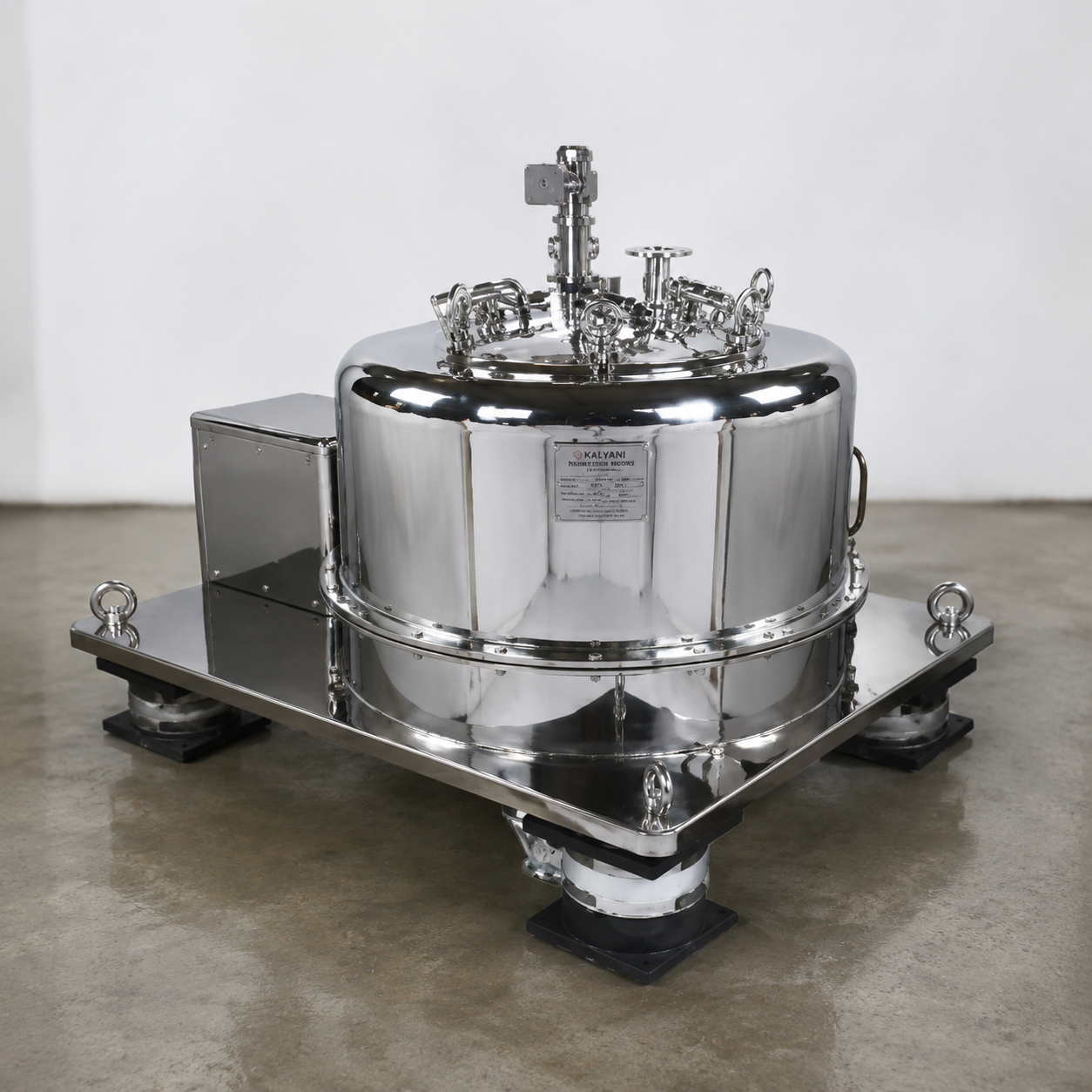

Bottom Discharge Type Centrifuge
Material Unload / Discharge:
Through Bottom
Negligible Labour & can be completely automated
Suspension / Mounting:
Inertia Plate with Anti Vibration Mounts (4 Point Suspension)
Special Features:
cGMP Construction
Large Central Opening
Sweeper not required
Left over material in bottom is negligible
Drastic reduction in manual labour
Toxic / Hazardous material can be safely handled
No human contact between product & Operator during
operation
Optional Features:
Complete CIP (Cleaning In Place) System
Heel removal System
Available in fully opening Outer Case Version
Process Operation can be completely automated
Vibration Tripper & monitoring system
Cake monitoring System
Zero speed Interlock, Fume Tight Construction
Sizes:
From 900 mm Dia to 1500 mm Dia
Useable Volume:
200Ltrs to 900 Ltrs per batch
Speed of Basket:
500 rpm to 1500 rpm
Moc:
Stainless Steel, Carbon Steel, Hastelloy, Rubber Lined, Fluoro Polymer Coating / Lining i.e. -Halar (ECTEE), Teflon (PFA)
