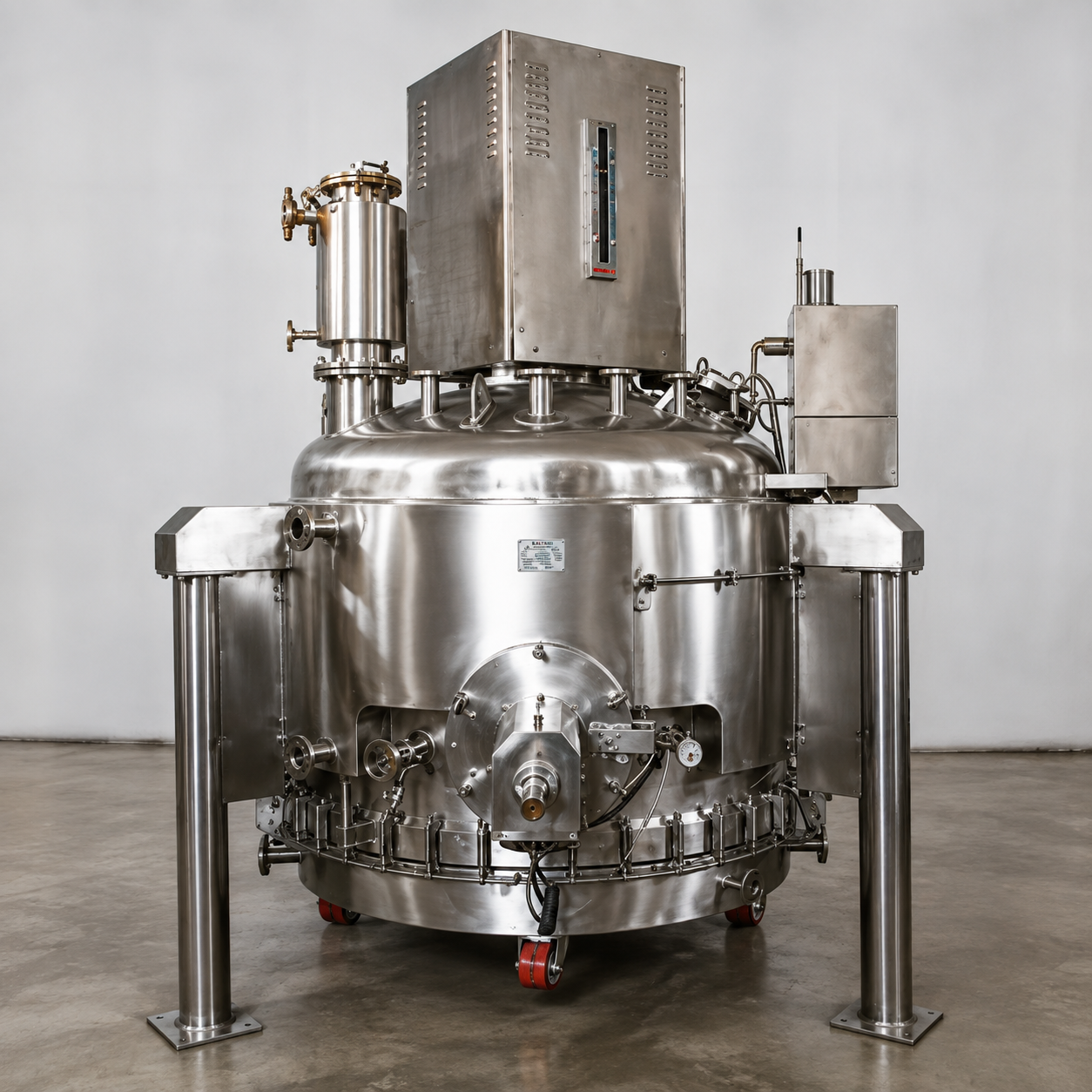

Agitated Nutsch Filter / Dryer
- Various Multiple Processes like Solid Liquid Separation, Agitating/ Washing, Resuspending / Mixing
- Extraction, Crystalling, Drying can be performed within a closed system in single unit an advantage
- Ideal equipment / System for hazardous / toxic Material
- All Dryer Internals, Product Process area is in 316/316L, Stainless steel construction, Mirror polish
- Heated limpet coiled / Jacket in combination with vacuum atmosphere ensures complete vaporization of moisture and drying of product
- PLC based automation of process batch control, with printable option,
- Full validation services available including DQ,1Q/0Q,FAT/SAT protocols
- cGMP construction for pharmaceutical Models and Non-cGMP for chemical Industries
- MOC: Stainless steel, Carbon steel, Halar coated, Hastelloy C-22 , HC-276 and other exotic material
- Capacity ranges from 50 liters to 1500 liters
- Available in Monoblock / Detachable / Bayonet types designs
- Shaft sealing types are Double Dry Mechanical Seal/ Single Mechanical Seal / Stuffing box
Technical Specifications
| Model | Slurry volume | shell dia mm | cake holding capacity | filtration area m/ sq. | agitator motor |
|---|---|---|---|---|---|
|
SS-50 |
50LTRS |
425 |
15 LTRS |
0.15 |
1 HP. |
|
SS-100 |
100LTRS |
550 |
35 LTRS |
0.23 |
2HP. |
|
SS-200 |
200 LTRS |
700 |
96 LTRS |
0.4 |
2 HP. |
|
SS-500 |
500 LTRS |
900 |
190 LTRS |
0.63 |
5 HP. |
|
SS-1000 |
1000 LTRS |
1200 |
395 LTRS |
1.13 |
7.5 HP. |
|
SS-2000 |
2000 LTRS |
1600 |
704 LTRS |
2 |
7.5 HP. |
|
SS-3000 |
3000 LTRS |
2000 |
1100 LTRS |
3.1 |
10 HP. |
|
SS-5000 |
5000 LTRS |
2500 |
2390 LTRS |
5.2 |
20 HP. |
|
SS-8000 |
8000 LTRS |
3200 |
3620 LTRS |
8 |
25 HP. |
|
SS-10000 |
10000 LTRS |
3600 |
5000 LTRS |
10 |
30 HP. |
|
SS-12000 |
12000 LTRS |
4000 |
5500 LTRS |
12.5 |
30 HP. |
